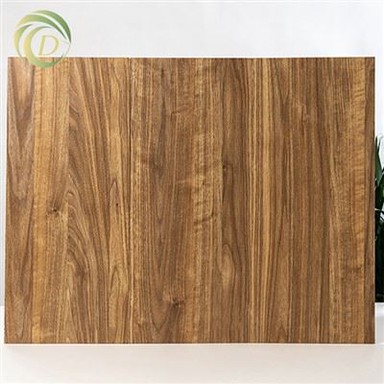

Magnesium Oxide Board/MgO Panel Cladding Material Laminated Board
Fireproof laminate flooring is a type of flooring that is designed to be highly resistant to fire. It is made using fire-resistant materials and has a high fire rating, which means it can withstand high temperatures for extended periods of time without catching fire or spreading flames. Fireproof laminate flooring is commonly used in commercial and residential buildings to help prevent the spread of fire and provide added safety.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What Is Magnesium Oxide Board/MgO Panel Cladding Material Laminated Board
Magnesium Oxide Board Cladding (also known as MgO cladding board) is a composite building/decorative panel made by laminating one or more functional surface materials (such as PVC film, wood veneer, fire-resistant veneer, metal foil, antibacterial coating, etc.) onto a magnesium oxide (MgO) board substrate through professional cladding technology. Its core advantage lies in combining the basic properties of MgO boards (fire resistance, water resistance, mold resistance, etc.) with the decorativeness, wear resistance, and functionality of the cladding layer. Widely used in interior decoration, furniture manufacturing, commercial spaces, and other fields, it has become a mainstream choice for environmentally friendly panels in recent years.
Advantages of Magnesium Oxide Board/MgO Panel Cladding Material Laminated Board
Fire Resistance: Class A1 Non-Combustible
The substrate is non-combustible; after flame-retardant treatment, cladding layers (e.g., PVC, wood veneer) still meet fire compartment requirements without toxic fume emission.
Water/Moisture Resistance: Water absorption expansion rate ≤3% (24h immersion)
High-density substrate + sealed cladding layer; suitable for humid environments (e.g., bathrooms, kitchens, basements) without mold or deformation.
Environmental Performance: Formaldehyde emission ≤0.025mg/m³ (E0/ENF Class)
Formaldehyde-free substrate; environmentally friendly hot-melt/water-based adhesives meet GB/T 39600-2021 standards.
Mechanical Performance: Flexural strength ≥12MPa, Compressive strength ≥30MPa
Glass fiber-reinforced substrate; improved overall rigidity after cladding, suitable for wall mounting and load-bearing furniture panels.
Wear Resistance: ≥4000 cycles (EN 13329 Class AC4)
PVC/fire-resistant veneer cladding layers are wear/scratch-resistant, suitable for high-traffic areas (malls, school corridors).
Decorative Performance: Surface flatness ≤0.3mm/m, rich color options
Simulates wood, stone, or metal textures; no secondary painting required, direct forming after construction.
Why Choose Us
Rich Experience
Our company has many years of production work experience. The concept of customer-oriented and win-win cooperation makes the company more mature and stronger.
Advanced Equipment
A machine, tool or instrument designed with advanced technology and functionality to perform highly specific tasks with greater precision, efficiency and reliability.
High Quality
Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.
Competitive Price
We have professional sourcing team and cost accounting team, stive to reduce cost and profit and provide you a good price.
24H Online Service
We try and respond to all concerns within 24 hours and our teams are always at your disposal in case of any emergencies.
One-stop Solution
With rich experience and one-to-one service,we can help you choose products and answer technical questions.
Magnesium Oxide Board/MgO Panel Cladding Material Laminated Board
Core Composition & Production Process
1. Substrate: Magnesium Oxide (MgO) Board
- Main Components: Inorganic panels made by mixing magnesium oxide (MgO) and magnesium chloride (MgCl₂) as cementitious materials, with glass fiber cloth, wood fiber, perlite, and other reinforcing fillers, followed by stirring, forming, and curing (the core substrate of "magnesium oxide boards").
- Substrate Properties: Inherently Class A1 fire-resistant, water/moisture-proof, formaldehyde-free, insect-proof, and high-strength, making it an ideal substrate for cladding (thickness usually 3-25mm, selected based on application scenarios).
2. Cladding Materials (Surface Composite Layers)
Common cladding materials are selected based on usage scenarios and functional requirements:
| Cladding Material Type | Core Functions | Application Scenarios |
|---|---|---|
| PVC Film (stone grain, wood grain, solid color) | High decorativeness, wear resistance, easy cleaning, water resistance | Interior walls, ceilings, cabinet doors, partitions |
| Natural Wood Veneer/Engineered Wood Veneer | Natural texture, high-end appearance, paintable | Furniture panels, hotel decoration, custom wardrobes |
| Fire-Resistant Veneer (flame-retardant resin-impregnated paper) | Enhanced fire resistance, scratch resistance | Equipment rooms, laboratories, fire compartment partitions |
| Metal Foil (aluminum foil, stainless steel foil) | Thermal conductivity/insulation, moisture resistance, corrosion resistance | Equipment rooms, pipeline cladding, outdoor auxiliary structures |
| Antibacterial Coating (silver ion, nano-coating) | Bacteria/mold inhibition, easy cleaning | Hospitals, food workshops, bathrooms |
| Antistatic Coating | Static elimination, dustproof | Electronic factories, equipment rooms |
3. Core Production Process
Substrate Pretreatment: Cut MgO boards to standard sizes, then sand, dedust, and apply moisture-proof treatment (edge sealing) to ensure a smooth, impurity-free surface and improve adhesion with the cladding layer.
Cladding Material Pretreatment: Preheat (e.g., PVC film) or apply adhesive (environmentally friendly hot-melt adhesive, water-based adhesive) to the cladding material to ensure tight bonding during lamination.
Lamination Process:
Hot Press Lamination: Suitable for wood veneer, fire-resistant veneer, etc. The cladding layer is tightly bonded to the substrate at high temperature (80-120℃) and pressure (0.5-1.2MPa) for stable forming.
Cold Press Lamination: Suitable for PVC film, metal foil, etc. Lamination under low temperature to avoid material deformation with high efficiency.
Film Coating: UV curing film is applied to the substrate surface using UV lamination technology, achieving both decorativeness and weather resistance.
Post-Processing: Trim edges, chamfer, drill holes (per installation requirements), and inspect finished products (flatness, adhesion, fire/water resistance).
Main Application Scenarios
1. Interior Architecture
Wall Decoration: Indoor walls (living rooms, bedrooms, corridors) of residences, hotels, and office buildings; replaces traditional latex paint and wallpaper with no need for secondary painting and easy cleaning.
Ceiling Materials: Ceilings in humid areas (bathrooms, kitchens, basements) – water/moisture-proof to avoid mold and peeling of gypsum boards; ceilings in equipment rooms and power distribution rooms (fire-resistant, antistatic).
Partition Walls: Office, hospital, and school partitions – Class A1 fire-resistant + lightweight (density ≤1.2g/cm³) for quick and convenient space division.
2. Furniture Manufacturing
Custom Furniture: Cabinet doors, wardrobe side panels, shoe cabinet panels, TV cabinet bodies – water/wear-resistant with diverse colors (adapting to modern, minimalist luxury, Nordic, etc., styles).
Commercial Furniture: Mall display cabinets, hotel furniture, hospital examination table panels – antibacterial and easy to disinfect, meeting public health requirements.
3. Commercial & Industrial Scenarios
High-Traffic Areas: Walls/ceilings of malls, stations, and airports – fire-compliant, wear-resistant, and easy to maintain.
Special Venues: Hospital operating room corridors, food processing workshops (antibacterial, water-resistant, easy to clean); electronic factories and data centers (antistatic, fire-resistant).
Outdoor Auxiliary Structures: Villa exterior wall cladding (weather-resistant cladding layer required, e.g., fluorocarbon-coated metal foil), sunroom partitions – moisture/corrosion-resistant.
4. Specialized Applications in Construction Projects
Fire Compartments: Back panels of fire shutters and stairwell walls in high-rise buildings – meets fire codes (Class A1 fire resistance, fire rating ≥1.5h).
Pipeline Cladding: Central air conditioning pipelines and equipment room cladding – insulation (with insulation layer) + fire resistance + moisture resistance to protect equipment and reduce noise.
Advantage Comparison with Traditional Panels
| Comparison Dimension | Magnesium Oxide Board Cladding | Traditional Panels (Solid Wood, MDF, Gypsum Board) |
|---|---|---|
| Fire Resistance | Class A1 non-combustible, no toxic fumes | Solid wood/MDF flammable; gypsum board fire-resistant but poor water resistance |
| Water/Moisture Resistance | Immersion-resistant, no mold/deformation | Solid wood/MDF prone to moisture expansion; gypsum board softens when wet |
| Environmental Friendliness | Formaldehyde-free, meets environmental standards | MDF/particleboard has high formaldehyde emission (E0 Class required) |
| Decorativeness | No secondary painting, rich color options | Requires painting/veneering, complex processes, limited colors |
| Service Life | 15-20 years (normal use) | 5-10 years (prone to deformation, mold, wear) |
| Construction Efficiency | Lightweight (20-30kg/㎡), direct cutting/installation | Solid wood heavy; gypsum board fragile, long construction cycle |
Magnesium Oxide Board/MgO Panel Cladding Material Laminated Board
Installation Requirements
- Cutting Tools: Use woodworking saws or electric cutting machines (equipped with diamond blades) to avoid edge chipping; seal edges with sealant after cutting to enhance water resistance.
- Fixing Method: Use self-tapping screws (galvanized or stainless steel to prevent rust) with spacing ≤300mm and ≥15mm from board edges; reserve 5-8mm expansion joints for wall installation (to accommodate temperature changes).
- Humid Environment Treatment: For bathrooms and kitchens, apply moisture-proof coating to the back of panels and seal joints with neutral silicone sealant to prevent moisture penetration.
Maintenance
- Daily Cleaning: Wipe with a damp cloth; avoid strong acid/alkali cleaners (e.g., toilet bowl cleaner, 84 disinfectant) to prevent cladding layer corrosion.
- Avoid Impact: High mechanical strength but avoid sharp impacts to prevent surface damage.
- Outdoor Use: Select weather-resistant cladding layers (e.g., fluorocarbon coating, PVDF film); regularly inspect for coating peeling and repair promptly.
Storage Conditions
Store in a dry, well-ventilated area; avoid outdoor exposure to rain or long-term humidity. Stack panels ≤1.5m high and elevate ≥10cm from the ground with wooden battens to prevent moisture.
Do not store with alkaline materials (e.g., cement, lime) to avoid substrate corrosion.
How Does Fireproof Laminate Flooring Provide Fire Resistance
Here's how fireproof laminate flooring typically provides fire resistance:
Fire-Retardant Materials
The core layer of fireproof laminate flooring is often made from a high-density fiberboard (HDF) that has been treated with fire-retardant chemicals. These chemicals reduce the rate at which the board will catch fire and slow down the spread of the flames.
Border Layer
Some fireproof laminate flooring products have a thin, fire-resistant layer around the edges of the planks. This border layer can help contain the fire to the initial point of contact and prevent it from spreading quickly to adjacent planks.
Surface Finish
The top layer of fireproof laminate flooring is typically a melamine resin or other fire-resistant materials that are less likely to catch fire or emit toxic fumes. This finish also helps to protect the underlying layers from damage due to exposure to heat.
Structural Design
The structural design of fireproof laminate flooring can also contribute to its fire resistance. For example, the flooring may be designed with air channels that allow for the release of smoke and gases, thereby maintaining a clearer path for escape in the event of a fire.
Self-Extinguishing Properties
Some fireproof laminates are designed to self-extinguish once the source of heat is removed, further preventing the spread of fire.
Low Smoke And Toxicity
Fire-resistant laminates are also designed to produce less smoke and emit fewer toxic fumes, which is crucial for maintaining visibility and safety during a fire emergency.
Customization Options of Magnesium Oxide Board/MgO Panel Cladding Material Laminated Board
Customization options for MgO board cladding cover five core dimensions: substrate properties, cladding layer functions, size specifications, process details, and application scenario adaptation. They can be flexibly adjusted to meet needs such as home decoration, commercial projects, and foreign trade exports. Below are detailed customization directions:
Substrate Customization (Core Foundation Adaptation)
The substrate directly affects overall panel performance, with customization available in size, thickness, and performance enhancement:
1. Size Specification Customization
Standard Sizes: 1220×2440mm (standard board), 1220×3050mm, 1220×3660mm (extended board) – suitable for most architectural/furniture scenarios.
Non-Standard Sizes: Custom cutting supported (minimum width ≥300mm, maximum length ≤6000mm). Examples: 1000×2000mm (furniture panels), 1220×4880mm (large commercial walls). Production lead time confirmation required.
Panel Thickness: 3-25mm optional, corresponding to scenarios:
3-6mm: Ceilings, thin partitions, furniture back panels (lightweight requirements).
8-12mm: Interior walls, cabinet doors, display cabinet panels (conventional decoration).
15-25mm: Partition walls, outdoor cladding, load-bearing panels (high-strength requirements).
2. Substrate Performance Enhancement Customization
Strength Enhancement: Increase glass fiber cloth layers (1-2 layers standard, 3-4 layers customizable) or add carbon fiber to improve flexural strength to ≥15MPa – suitable for load-bearing scenarios (e.g., equipment bases, heavy display cabinets).
Moisture/Corrosion Resistance Enhancement: Apply special moisture-proof coating (e.g., silane coupling agent) or preservative to the substrate surface, reducing water absorption expansion rate to ≤2% (3% standard) – suitable for high-humidity environments (e.g., coastal areas, basements).
Lightweight Customization: Adjust filler ratio (increase perlite content) to reduce density to 0.9-1.1g/cm³ (1.2g/cm³ standard) while retaining fire/water resistance – suitable for ceilings and movable partitions.
Cladding Layer Customization (Core of Function & Decoration)
Cladding layer customization directly determines panel appearance, texture, and special functions, with options in material type, color texture, functional coating, and thickness:
1. Cladding Material Type Customization (Functional Adaptation)
| Cladding Material | Customization Details | Application Scenarios |
|---|---|---|
| PVC Film | - Regular PVC (standard wear resistance) / Thickened PVC (wear resistance ≥6000 cycles, Class AC5);- Flame-retardant PVC (V0 Class) / Food-grade PVC (food-contact safe, e.g., kitchen countertops);- Matte/Glossy/Skin-feel/Matte texture | Home decoration walls, cabinets, bathrooms/kitchens |
| Wood Veneer | - Natural wood veneer (oak, walnut, ash, etc., thickness 0.6-1.2mm);- Engineered wood veneer (uniform color, lower cost, dyeable);- Parquetry veneer (custom grain patterns, e.g., straight grain, mountain grain, irregular parquetry) | High-end home decoration, hotel furniture, custom wardrobes |
| Metal Foil | - Materials: Aluminum foil (standard), stainless steel foil (304/316 Grade), copper foil;- Thickness: 0.05-0.2mm, with film coating option (fingerprint-resistant, scratch-resistant);- Colors: Natural, champagne gold, matte black (custom spray painting) | Equipment rooms, pipeline cladding, outdoor decoration |
| Functional Coating | - Antibacterial coating: Silver ion/nano-zinc oxide coating (antibacterial rate ≥99%, suitable for hospitals, food workshops);- Antistatic coating (surface resistance 10⁶-10⁹Ω, suitable for electronic factories);- Fluorocarbon coating (high weather resistance, suitable for outdoor use);- Fire-resistant veneer (flame-retardant resin-impregnated paper, thickness 0.8-1.5mm, enhanced fire rating) | Special venues (hospitals, equipment rooms, outdoor) |
| Other Materials | - Stone texture film (simulated marble, granite, thickness 0.3-0.5mm);- Fabric film (soft texture, suitable for feature walls);- Transparent UV film (protects substrate, retains original texture) | Home decoration feature walls, commercial display cabinets |
2. Color & Texture Customization
Standard Colors: Thousands of ready-made colors (wood grain, stone grain, solid color, metal color) with color card selection.
Personalized Colors:
Custom Patterns: Provide high-definition images (e.g., corporate logos, exclusive textures) for digital printing on cladding layers (suitable for commercial spaces, brand display cabinets).
Color Matching: Precisely match colors based on provided color codes (e.g., Pantone, RAL) to ensure consistency with overall decoration styles.
Texture Customization: Custom surface embossing (e.g., wood grain relief, stone chipped finish, leather texture) to enhance touch and visual layering.
Process & Size Detail Customization (Adaptation to Installation & Usage)
1. Edge Treatment Customization
Standard Treatment: Straight edge sanding, rounded chamfering (R2-R5mm, anti-collision).
Special Treatment:
Edge Banding: PVC edge banding, wood veneer edge banding, metal edge banding (adapts to panel ends, enhances water resistance).
Beveled Edge (45°/60°, suitable for seamless wall splicing).
Grooving: Pre-grooving on edges (facilitates folding and curved installation, e.g., curved walls).
2. Hole Drilling & Grooving Customization
Pre-Drilling: Custom power outlet holes, switch holes, and pipeline holes (precise positioning to reduce on-site construction).
Back Grooving: Custom horizontal/vertical grooving (depth 1/2-2/3 of panel thickness) to facilitate bending (e.g., cylindrical cladding, curved ceilings).
Splicing Grooves: Custom tongue-and-groove joints (lock-type splicing for easy installation and seamless joints).
3. Splicing Method Customization
Flat Seam Splicing (standard).
Invisible Splicing: Custom tenon-and-mortise structures or splicing grooves with matching color sealant for visual integration (suitable for large-area walls/ceilings).
Modular Splicing: Custom standard modules (e.g., 300×600mm, 600×600mm) for quick assembly/disassembly (suitable for temporary exhibition halls, event spaces).
Special Scenario Adaptation Customization (Targeted Function Enhancement)
1. Water/Moisture Resistance Customization
Enhancement Plan: Full edge sealing of substrate + seamless cladding layer + moisture-proof coating (e.g., polyurethane coating) on the back.
Application Scenarios: Bathrooms, kitchens, basements, coastal buildings – water resistance up to IPX8 (no deformation after 24h immersion).
2. Fire Resistance Upgrade Customization
Enhancement Plan: Flame-retardant cladding materials (e.g., V0 Class PVC, flame-retardant wood veneer) + flame retardant additives (e.g., magnesium hydroxide) in the substrate, increasing overall fire rating to 2.0h (1.5h standard).
Application Scenarios: Fire compartments in high-rise buildings, equipment rooms, power distribution rooms, fire exits – Class A1 fire resistance test reports provided.
3. Weather Resistance Customization (Outdoor Scenarios)
Enhancement Plan: UV-resistant cladding layers (e.g., fluorocarbon coating, weather-resistant PVC film) + anti-aging treatment on the substrate surface, weather resistance ≥Class C4 (corrosion/UV resistant, service life ≥10 years).
Application Scenarios: Outdoor walls, sunrooms, villa exterior cladding, open-air display cabinets.
4. Environmental Class Customization
Basic Classes: E0 Class (formaldehyde emission ≤0.05mg/m³), ENF Class (≤0.025mg/m³).
Export Customization: Compliance with European/American environmental standards (e.g., CARB P2, EPA TSCA Title VI, EU E0 Class) with corresponding test reports for foreign trade exports.
Supporting Services & Packaging Customization (Adaptation to Procurement & Transportation)
1. Packaging Customization
Standard Packaging: Waterproof kraft paper + wooden pallets (domestic transportation).
Export Packaging: Vacuum film + moisture-proof agent + plywood pallets (ISPM 15 compliant, fumigation-free) with customizable English shipping marks (product name, specifications, batch number, destination).
Special Packaging: Shockproof packaging (for fragile cladding layers, e.g., thin wood veneer, metal foil) and batch sorting packaging (packaged by project requirements).
2. Test Report & Certification Customization
Domestic Requirements: Provide GB standard test reports (Class A1 fire resistance, ENF Class environmental protection, water resistance, etc.).
Export Requirements: Custom target country certification reports (e.g., EU CE, US ASTM, Southeast Asian SIRIM) with supporting English test reports and specifications.
3. Small/Batch Customization Support
Small-Batch Customization: Minimum order quantity 10-50 pieces (suitable for home decoration and small commercial projects).
Bulk Customization: Support orders over 10,000 pieces with custom logos and product codes (suitable for brands and large construction projects), offering accelerated production lead times.
Customization Process & Notes
1. Customization Process
Demand Communication: Clarify application scenarios (home/commercial/outdoor), core functions (fire/water/antibacterial resistance), size specifications, and cladding material/color.
Sample Confirmation: Provide color cards and small samples (10×10cm or 20×20cm) to confirm cladding effect, texture, and process details.
Technical Plan: Engineers issue customized technical drawings (size, hole position, edge treatment) for mutual confirmation.
Production & Delivery: Produce per drawings with production progress tracking; deliver with installation instructions (English version available).
2. Notes
Non-standard size customization requires 7-15 days of production lead time (extended for bulk orders).
High-definition source files (resolution ≥300dpi) are required for personalized color/pattern customization to ensure printing quality.
For outdoor customization, specify environmental conditions (humidity, UV intensity, corrosion level) to match weather-resistant materials.
For foreign trade customization, confirm target country standards in advance (e.g., EU REACH, US CARB) to avoid compliance risks.
Our Factory
Jinan Fandeng New Materials Co. Ltd. is a company dedicated to magnesia cement products. Our main products are Magnesium Oxide Boards(MGO Board) for construction and laminated MgO boards with for furniture and renovation. Our mission is to provide the world's construction markets with environmentally friendly, high-performance and sustainable green materials.
FAQ
Q: What is the fire rating of magnesium oxide board cladding? Does it meet international standards?
Q: Can this board be used in humid environments (e.g., bathrooms, basements)? What is its water resistance?
Q: What customization options are available? What is the minimum order quantity (MOQ)?
Q: Is the installation complicated? Is a professional construction team required?
Q: What is the environmental rating of the board? Does it meet European and American export standards?
Q: Can export packaging and certification documents be customized?
Hot Tags: magnesium oxide board/mgo panel cladding material laminated board, China magnesium oxide board/mgo panel cladding material laminated board manufacturers, suppliers, factory, laminate floor boards that mimic tile, laminate floor boards with bamboo finish, laminate floor boards with decorative features, laminate floor boards with oval style, laminate floor boards with rabbet edge finish, laminate floor boards with tongue and groove edge finish
No Information
