Magnesium Oxide Raised Floor Systems



1. Core Composition

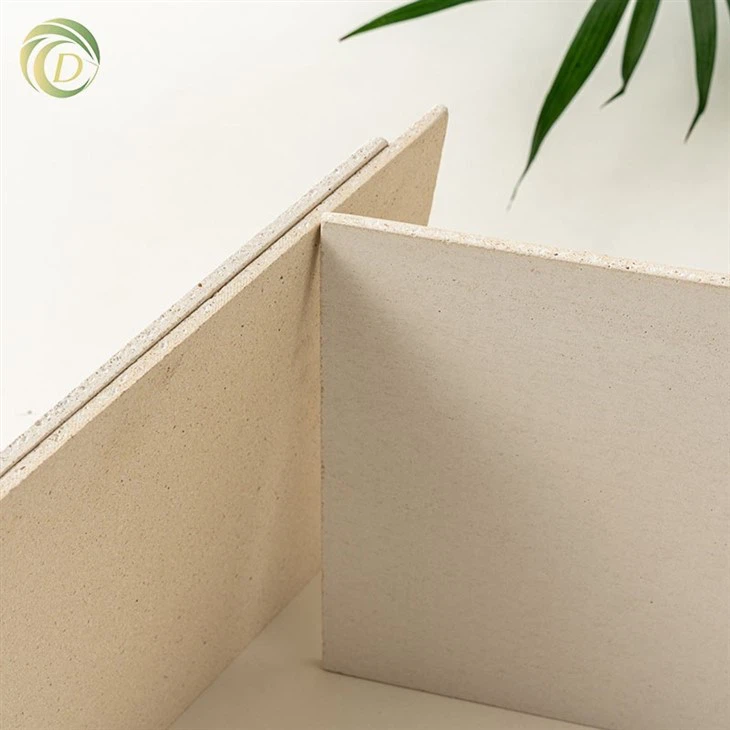

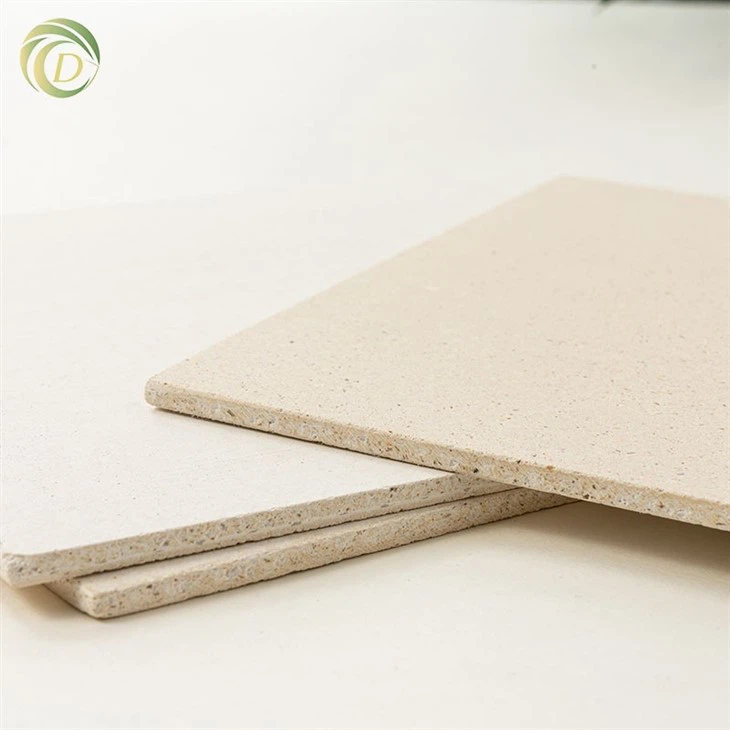

1.1 Core Panel (MgO Flooring Panel)

Base Material: Magnesium oxide (MgO) as the main component, mixed with magnesium chloride / magnesium sulfate, water, plant fiber / wood flour, and reinforced with fiberglass mesh. Formed under high pressure and cured.

Panel Structure (Multi-layer Composite):

• Wear Layer: HPL fire-resistant sheet, PVC or ceramic veneer, wear resistance ≥ 6000 revolutions.
• Decorative Layer: Wood grain, stone pattern, solid color, etc.
• MgO Core Layer: Provides strength, fire resistance, and moisture resistance.
• Backing Layer: Moisture-proof, dimensionally stable, prevents deformation.
• Standard Size: Commonly 600×600 mm, thickness 20–30 mm; customizable sizes available.

1.2 Supporting Structure

• Pedestals: Galvanized steel / stainless steel, height adjustable (usually 50–300 mm).
• Stringers: Connect pedestals to form a grid frame, ensure stability and load capacity.
• Bases: Anti-slip, shock-absorbent, fixed to the original floor.

---

2. Key Performance Advantages

2.1 Excellent Fire Resistance

Class A non-combustible (GB8624), EN13501-1 A2fl-s1. Fire resistance over 2 hours. No flaming droplets, no toxic smoke.

2.2 Waterproof, Moisture-proof & Mold-resistant

Inorganic material, low water absorption, no expansion, no deformation. Suitable for basements, clean rooms, humid environments.

2.3 High Strength & High Loading Capacity

Compressive strength approx. 20 MPa (3000 PSI). Excellent impact resistance, suitable for heavy equipment and cabinets.

2.4 Eco-friendly & Non-toxic

No formaldehyde, no PVC, no heavy metals. Meets ENF and green building standards. Recyclable material.

2.5 High Dimensional Stability

Low expansion and contraction rate. No warping or cracking even under long-term use. Compatible with underfloor heating.

2.6 Sound & Heat Insulation

Improves floor sound insulation (STC up to 60, IIC 53–58). Good thermal insulation performance.

2.7 Easy Installation & Maintenance

Modular design, single panel removable for cable inspection and maintenance. Easy to clean with low maintenance cost.

3. Comparison with Traditional Raised Flooring

Performance	MgO Raised Floor	All-steel Raised Floor	Calcium Sulfate Raised Floor
Fire Rating	Class A Non-combustible	Class B1 Flame Retardant	Class B1 Flame Retardant
Water & Moisture Resistance	Excellent	Fair (prone to rust)	Poor (swells when wet)
Eco-friendliness	Non-toxic, formaldehyde-free	Moderate	Moderate
Dimensional Stability	Excellent	Good	Fair
Weight	Light	Heavy	Medium
Typical Applications	Data centers, clean rooms, basements, offices	General server rooms, offices	Offices, weak current rooms

---

4.  Applications

• Data Centers & IT Rooms: Class A fireproof, high load capacity, easy cable management.
• Clean Rooms & Medical Facilities: Waterproof, mold-proof, dust-free, easy to sanitize.
• Basements & Humid Areas: Solves moisture, mold, and deformation issues.
• High-end Offices & Commercial Spaces: Eco-friendly, durable, sound-insulated.
• Factories & Warehouses: High strength, impact-resistant, fireproof.

---

5. Installation Guidelines

• Base Preparation: Flatness ≤ 2 mm / 2 m, moisture content ≤ 8%.
• Pedestal Positioning: Laser level calibration, grid layout, level error ≤ 0.5 mm/m.
• Panel Installation: Modular installation, expansion joints reserved.
• Maintenance: Regularly check pedestal tightness; clean with neutral detergent.



About The Factory：



Company Advantage：

We are a company dedicated to magnesia cement products. Our main products are Magnesium Oxide Boards (MGO Board) for construction and laminated MgO boards for furniture and renovation. Our mission is to provide the world's construction markets with environmentally friendly, high-performance and sustainable green materials.

We work with China Magnesium Materials Association (CMMA) and Magnesium Oxide Association (MOCA) in North America to raise awareness and promote the use of magnesium oxide cement products. We focus on the quality control and consistency of the MGO products. We have been actively involved in developing American Society for Testing and Materials (ASTM) standards related with MGO products.



Packing and Shipping for Magnesium Oxide Raised Floor Systems:



FAQ:

Q: What is your delivery time?

A: One month after receiving the deposit.

Q: What is the production capacity of your company?

A: We can produce 5000 square meters per day.

Q: What is your MOQ? Can we order a mix of different sizes?

A: Yes. The MOQ is 100 pieces and mixed loading is also acceptable.
