Mgo Board With Enhanced Fire Resistance And Stability

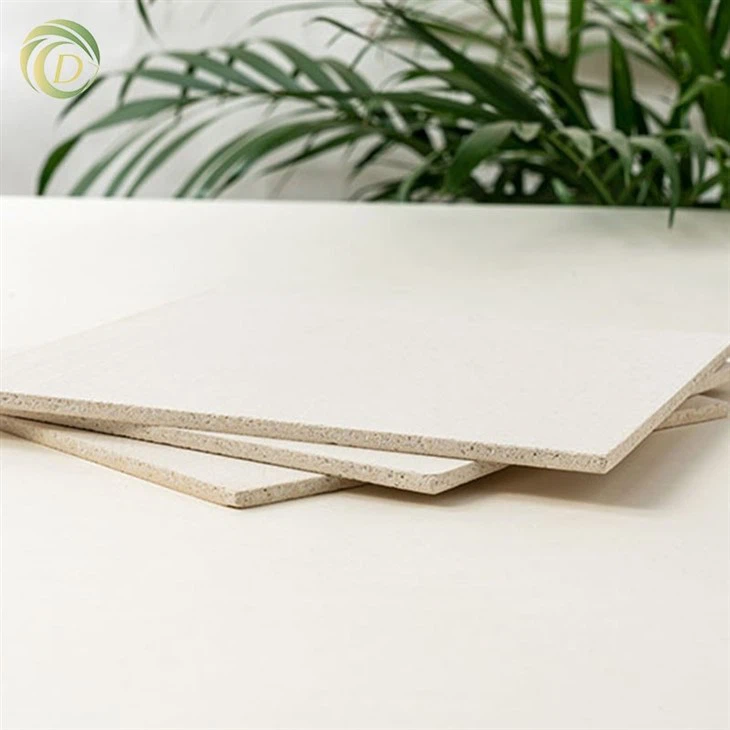

MGO Board (Magnesium Oxide Board), also known as Magnesia Board or Magnesium Cement Board, is an innovative non-combustible building material engineered for superior fire protection and dimensional stability. The enhanced version integrates advanced manufacturing technologies and specialized formulations to deliver unmatched performance in high-risk fire zones and challenging environmental conditions, making it an ideal choice for both commercial and residential construction projects worldwide.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What Is Mgo Board With Enhanced Fire Resistance and Stability?
This mineral-based composite panel is composed of high-purity magnesium oxide (MgO), magnesium sulfate (MgSO₄) or magnesium chloride (MgCl₂) as a binder, reinforced with multiple layers of alkali-resistant fiberglass mesh, and filled with environmentally friendly lightweight aggregates. The result is a versatile building solution that combines exceptional fire resistance, structural integrity, and long-term stability.
Advantages of Mgo Board With Enhanced Fire Resistance and Stability
Uncompromised safety: Highest fire rating provides peace of mind in high-risk environments
Long-term value: Dimensional stability reduces maintenance costs and extends service life
Code compliance: Meets or exceeds international fire safety standards (ASTM, EN, GB)
Design flexibility: Suitable for both interior and exterior applications with various finishes
Sustainable choice: Eco-friendly composition aligns with green building initiatives (LEED, BREEAM)
Compatibility with Green Building Standards
Why Choose Us
Rich Experience
Our company has many years of production work experience. The concept of customer-oriented and win-win cooperation makes the company more mature and stronger.
Advanced Equipment
A machine, tool or instrument designed with advanced technology and functionality to perform highly specific tasks with greater precision, efficiency and reliability.
High Quality
Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.
Competitive Price
We have professional sourcing team and cost accounting team, stive to reduce cost and profit and provide you a good price.
24H Online Service
We try and respond to all concerns within 24 hours and our teams are always at your disposal in case of any emergencies.
One-stop Solution
With rich experience and one-to-one service,we can help you choose products and answer technical questions.
Mgo Board With Enhanced Fire Resistance and Stability
Core Components & Advanced Manufacturing Process
| Component | Function | Enhancement for Fire & Stability |
|---|---|---|
| High-purity MgO | Primary structural foundation | Offers inherent non-combustibility and high-temperature resistance; enhanced grade utilizes ≥95% pure MgO for superior fire performance |
| Magnesium Sulfate (MgSO₄) | Binding system | Forms a stable crystalline structure; reduces moisture absorption compared to MgCl₂, enhancing long-term stability |
| Multi-layer fiberglass mesh | Reinforcement | 4-6 layers of high-tensile glass fiber mesh ensure uniform strength distribution and crack resistance |
| Lightweight aggregates | Filler | Perlite, vermiculite, or mineral wool improve insulation and reduce weight while preserving fire resistance |
| Additives | Performance enhancers | Fire-retardant agents, water repellents, and stabilizers boost fire resistance and dimensional stability |
Advanced Manufacturing Process:
Precision mixing: Raw materials are blended in precise proportions using computer-controlled systems for consistency
Layered reinforcement: Fiberglass mesh is embedded in multiple layers during casting to maximize strength
Press curing: High-pressure molding (15-20 MPa) followed by controlled curing (28-30 days) creates a dense, stable structure
Ceramicization treatment: Special post-curing process forms a micro-ceramic layer that enhances fire resistance at high temperatures
Quality control: Each batch undergoes rigorous testing for fire rating, bending strength, and water absorption MagPanel
Commercial Construction
Fire-rated walls/ceilings: Hospitals, schools, shopping malls, and high-rise buildings requiring A1 fire rating magmatrixboards.com
Industrial facilities: Factories, power plants, and chemical plants with high fire risk
Public transport hubs: Airports, train stations, and subway stations needing smoke-free evacuation routes
Data centers: Fire protection for server rooms and electrical enclosures
Residential Construction
Kitchen/bathroom walls: Moisture and fire-resistant surfaces near stoves and water sources
Garage walls: Fire separation between living areas and garages MagO®
Basement finishing: Stable performance in damp environments magmatrixboards.com
Attic insulation: Fire-resistant sheathing for roof assemblies
Special Applications
Shipbuilding: Marine-grade fireproof panels for vessel interiors MagO®
Tunnel linings: Fire-resistant lining for road and rail tunnels
Modular construction: Prefabricated wall panels with consistent quality
Renovation projects: Retrofit solution for improving fire safety in existing buildings
Mgo Board With Enhanced Fire Resistance and Stability
Enhanced Fire Resistance Performance
1 Fire Rating & Certification
Highest non-combustible classification: A1 (GB 8624-2012) and ASTM E136 Non-Combustible
Flame spread index: 0-10 (Class A), smoke developed index: 0-5, ensuring minimal smoke and toxic fumes ZS2 Technologies
Temperature resistance: Withstands 800°C without burning and 1200°C without flame propagation
Fire endurance: 8mm board with standard framing achieves 4 hours fire resistance; 12mm board can reach 6 hours
Certifications: EN ISO 1716, ASTM E119, UL 263, and CE marking for global acceptance MagPanel
2 Technical Advantages in Fire Protection
Ceramicization effect: At 500-800°C, the board forms a dense ceramic layer that blocks oxygen and heat transfer, maintaining structural integrity
Heat absorption: Endothermic reaction during heating absorbs large amounts of heat, slowing temperature rise in surrounding areas
No toxic emissions: Does not release harmful gases or smoke when exposed to fire, improving evacuation safety
Structural stability: Maintains 95% of compressive strength after fire exposure (industry average: 60%)
No spalling: Resists cracking or breaking under thermal stress, preventing fire spread through gaps MagO®
Enhanced Dimensional Stability
1 Key Stability Features
Low water absorption: ≤8% (enhanced grade: ≤5%) compared to traditional gypsum board (20-30%)
Minimal expansion/contraction: Linear expansion coefficient of 0.04-0.06% (1/3 of cement board)
Moisture resistance: Stable in 90% RH environments without warping, swelling, or delamination ZS2 Technologies
Temperature tolerance: Maintains integrity from -40°C to +80°C without significant deformation
Anti-aging: Resists UV degradation and corrosion; service life of 50+ years in normal conditions
2 Stability Enhancement Technologies
Crystalline stabilization: Special curing process creates stable magnesium silicate hydrate crystals that resist moisture penetration
Edge reinforcement: Reinforced edges prevent chipping and ensure consistent performance during installation magmatrixboards.com
Surface treatment: Water-repellent coating reduces moisture absorption while maintaining breathability ZS2 Technologies
Stress relief: Controlled drying process minimizes internal stresses that cause cracking
Mgo Board With Enhanced Fire Resistance and Stability
Additional Performance Advantages
| Feature | |
|---|---|
| High strength: Bending strength of 16-27 MPa, impact strength ≥25 MPa, suitable for structural applications | |
| Sound insulation: 12mm board provides 44-48 dB sound reduction coefficient (SRC), ideal for partition walls | |
| Eco-friendly: Non-toxic, asbestos-free, formaldehyde-free, and 100% recyclable MagPanel | |
| Termite/mold resistance: Inorganic composition resists biological degradation; maintains integrity in humid environments magmatrixboards.com | |
| Easy installation: Lightweight (0.9-1.1 g/cm³), can be cut, drilled, and screwed like wood | |
| Versatile finishing: Accepts paint, wallpaper, tile, and other decorative finishes |
Specifications & Sizes
| Parameter | Standard Range | Enhanced Grade |
|---|---|---|
| Thickness | 3-20 mm | 6-15 mm (most popular for fire-rated applications) |
| Length | 2400-3000 mm | 2400/2700/3000 mm |
| Width | 1200-1220 mm | 1220 mm (standard) |
| Density | 0.85-1.1 g/cm³ | 0.95-1.05 g/cm³ (optimal balance of strength and weight) |
| Edge profile | Square, bevelled, tongue-and-groove | Tongue-and-groove for improved stability in wall assemblies |
Mgo Board With Enhanced Fire Resistance and Stability
Installation Guidelines
Frame preparation: Use steel or treated wood studs spaced 400-600 mm apart
Cutting: Use circular saw with diamond blade or jigsaw for clean edges
Fixing: Use corrosion-resistant screws (stainless steel or zinc-plated) at 200-250 mm intervals
Joint treatment: Fill joints with magnesium-based joint compound and embed fiberglass tape
Finishing: Apply primer before painting or wallpapering; use appropriate adhesive for tile installation
Maintenance & Care
Cleaning: Wipe with damp cloth; avoid abrasive cleaners
Repairs: Small cracks can be filled with joint compound; damaged areas should be replaced
Inspection: Check for water damage annually in high-moisture areas
Storage: Store flat in dry, well-ventilated area; avoid direct sunlight and rain
Our Factory
We are a company dedicated to magnesia cement products. Our main products are Magnesium Oxide Boards (MGO Board) for construction and laminated MgO boards with for furniture and renovation. Our mission is to provide the world's construction markets with environmentally friendly, high-performance and sustainable green materials.
We work with China Magnesium Materials Association (CMMA) and Magnesium Oxide Association (MOCA) in North America to raise awareness and promote the use of magnesium oxide cement products. We focus on the quality control and consistency of the MGO products. We have been actively involved in developing American Society for Testing and Materials (ASTM) standards related with MGO products.
